8 ft. 12 AWG Charge Controller and Battery Connector Tray Cables by Renogy

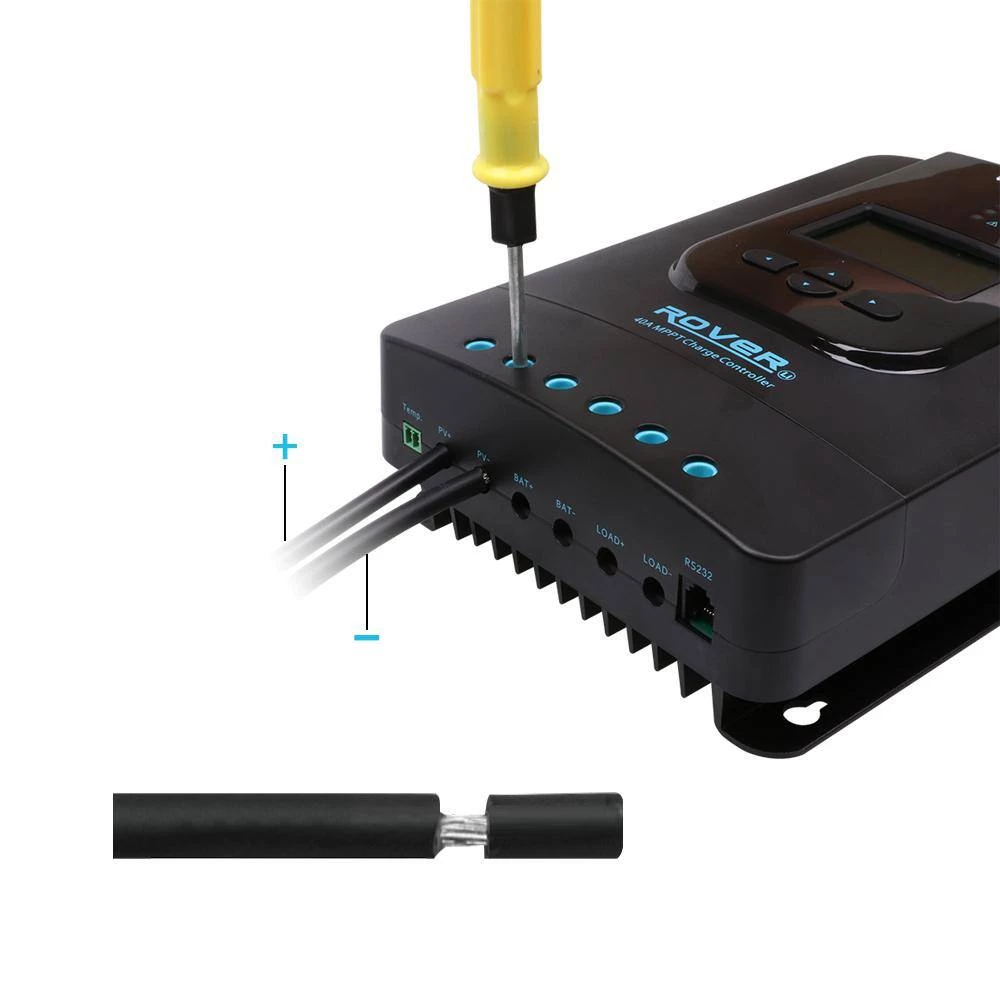

Connect your charge controller to the battery with a pair of Renogy high-quality copper tray cables. Specialized with battery rings on one end for effortless connection to your battery and exposed stranded wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!

• 【Connect the Battery and Charge Controller】 Renogy offers a range of different lengths, as well as four gauge sizes to choose from. 3/8 inch round center hole.

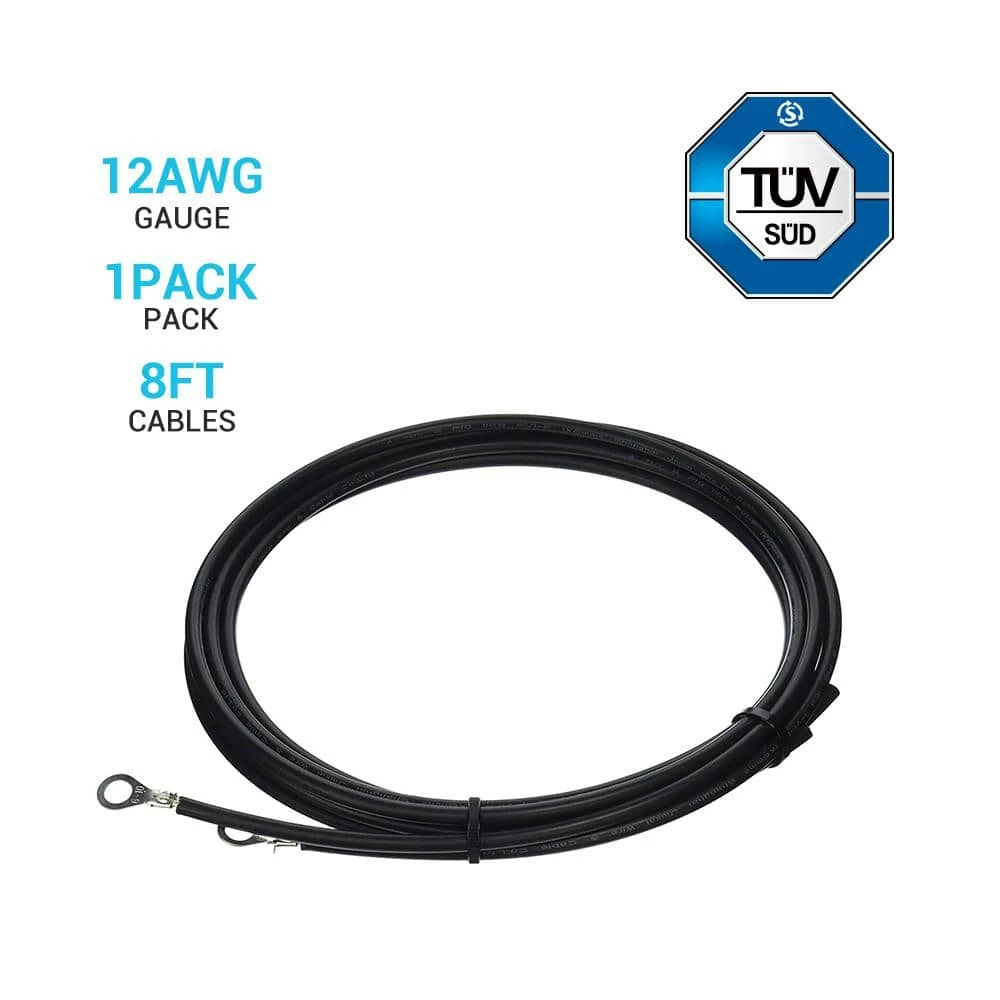

• 【TUV LISTED】 The cable meets TUV standards for PV solar application.UV resistant and waterproof. Produce optimal power output even in high-temperature conditions.

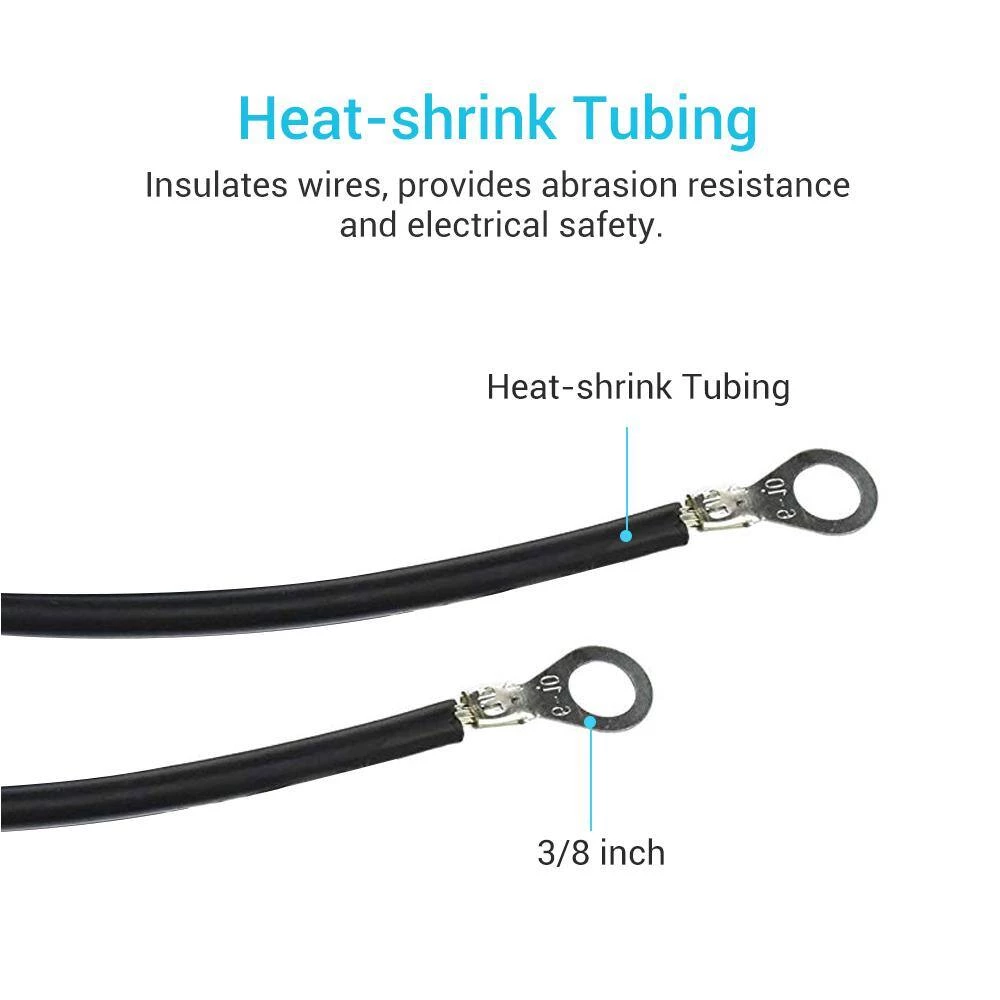

• 【RELIABLE QUALITY】 Heat-shrink tubing insulates wires, provides abrasion resistance and electrical safety.

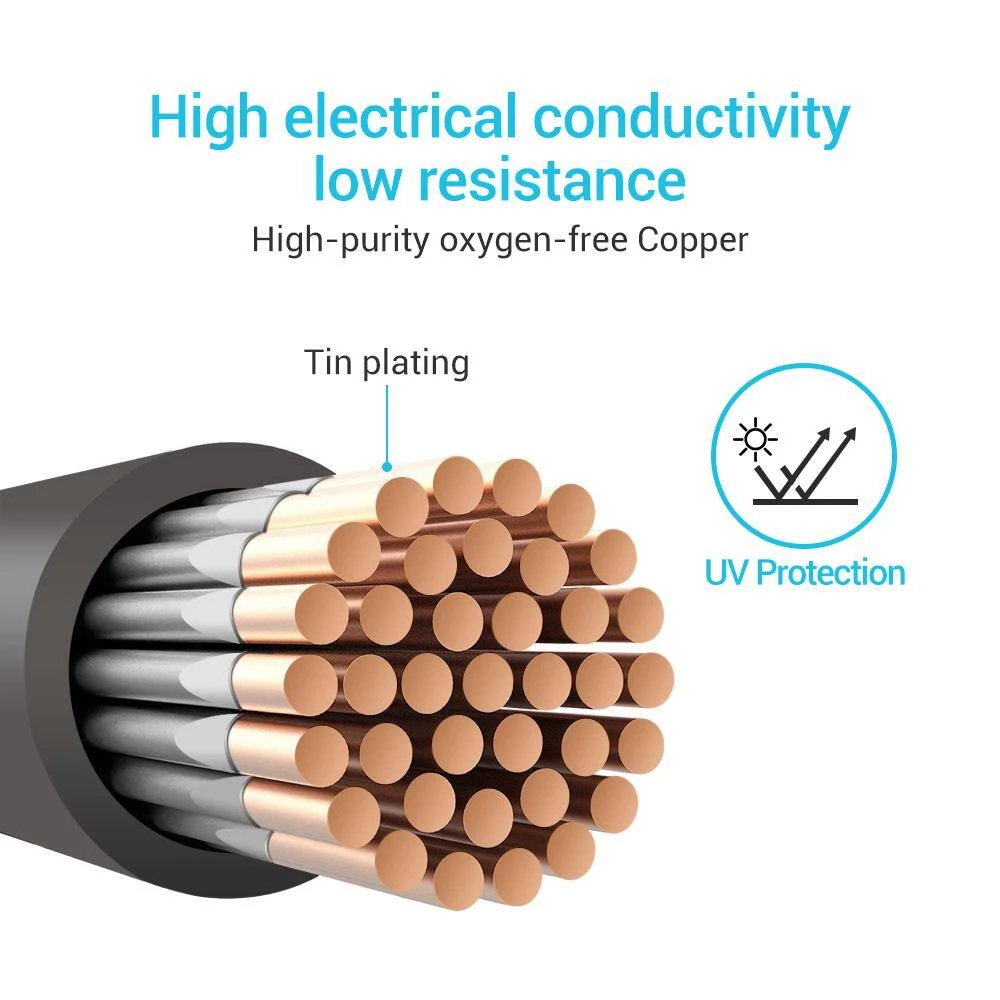

• 【PURE COPPER】 Tin-plated copper terminals to minimize corrosion and the pure oxygen-free copper wiring ensures maximum conductivity.
• Terminal Size: 3/8 in Lugs (M10) Max. Current: 20A Rating Voltage: 600/1000V Temperature: -40°F to +185°F
• 【PACKAGE INCLUDES】 1 Pair Battery to Charge Controller Tray Cables for 3/8 in Lugs
• 【FAQ】 1. What is the tray cable for? The tray cable connects your Renogy solar charge controller to your battery bank ring terminals. 2. Is the length indicated per cable or the total length of both cables together? The tray cable length indicated is for each cable provided. 3. What battery cables do I need to connect my charge controller and battery? Connect your charge controller to the battery with Renogy high-quality coppers tray cable. Specialized with battery rings on one end for effortless connection to your battery and exposed wire on the other end to lead directly into your charge controller, this wire makes the system set up as easy as can be!
• 4. What wire size should my battery cables be? Consider the following factors when sizing your wire: a. Current flow in amps. Pick a wire gauge that is big enough to carry the amount of current (in amps) that will be flowing through your system. For instance, if you have one of Renogy 40Amp charge controllers, we would recommend using 8AWG wires. b. Charge controller terminals. Some charge controllers have small terminals that won’t accept wire thicker than a certain gauge. Check to see if compatible wire gauges are listed in your charge controller’s manual.
• 5. Do I need to have the fuse between the charge controller and battery? When hooking up your Renogy system, the best way to add protection is by using fuses or circuit breakers. They’re used to protect the wiring from getting too hot and also protect all devices connected in the system from catching fire or getting damaged if a short circuit occurs. They are not necessary for the system to run properly, but we always recommend using fuses or circuit breakers for safety purposes. There are three different locations that we recommend installing fuses or breakers: first, between the charge controller and battery bank, second, between the charge controller and solar panels, and third would be between the battery bank and inverter. To determine the fuse size needed between the charge controller and battery bank you simply match the amperage rating on the charge controller. For instance, if you have one of our 40Amp charge controllers, we would recommend using a 40Amp fuse.
• 6. Are the cables made of Tin or Copper? The Tray Cables are stranded copper wires that are tin-plated.
