5 Strings Solar Combiner Box by Renogy

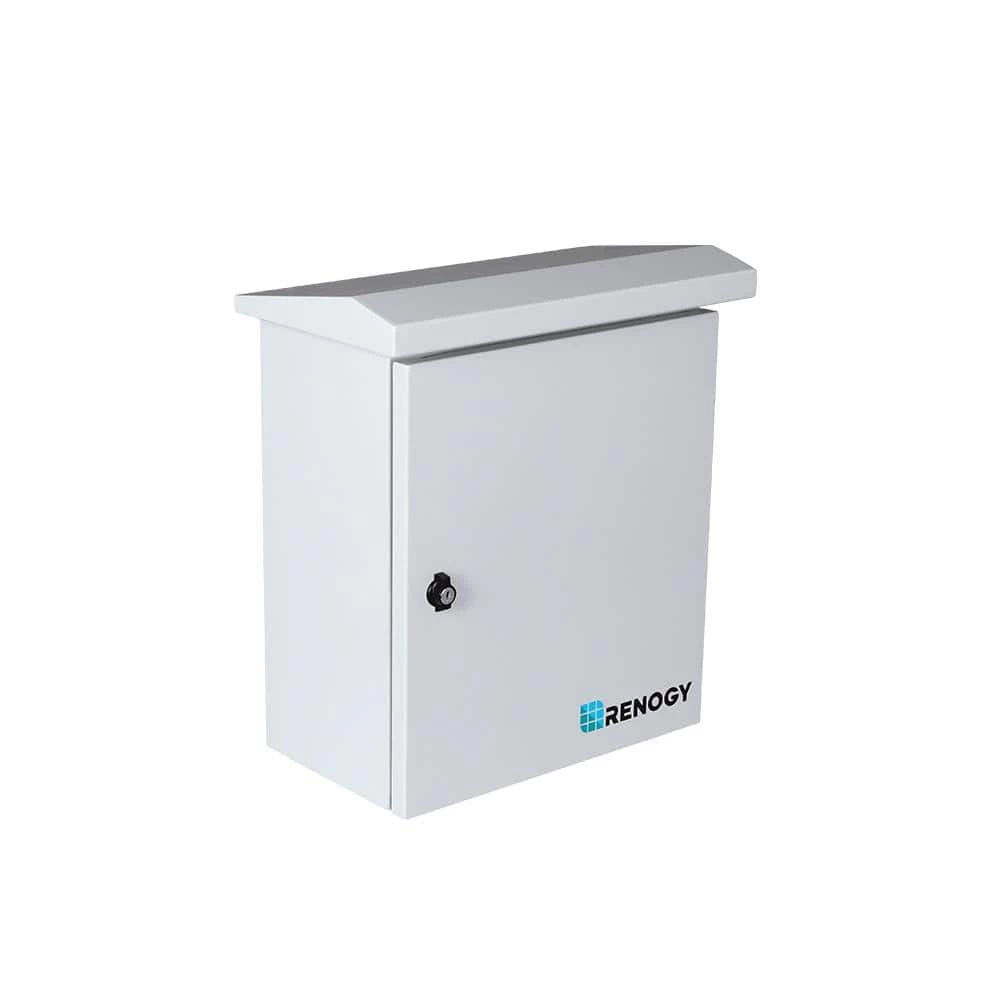

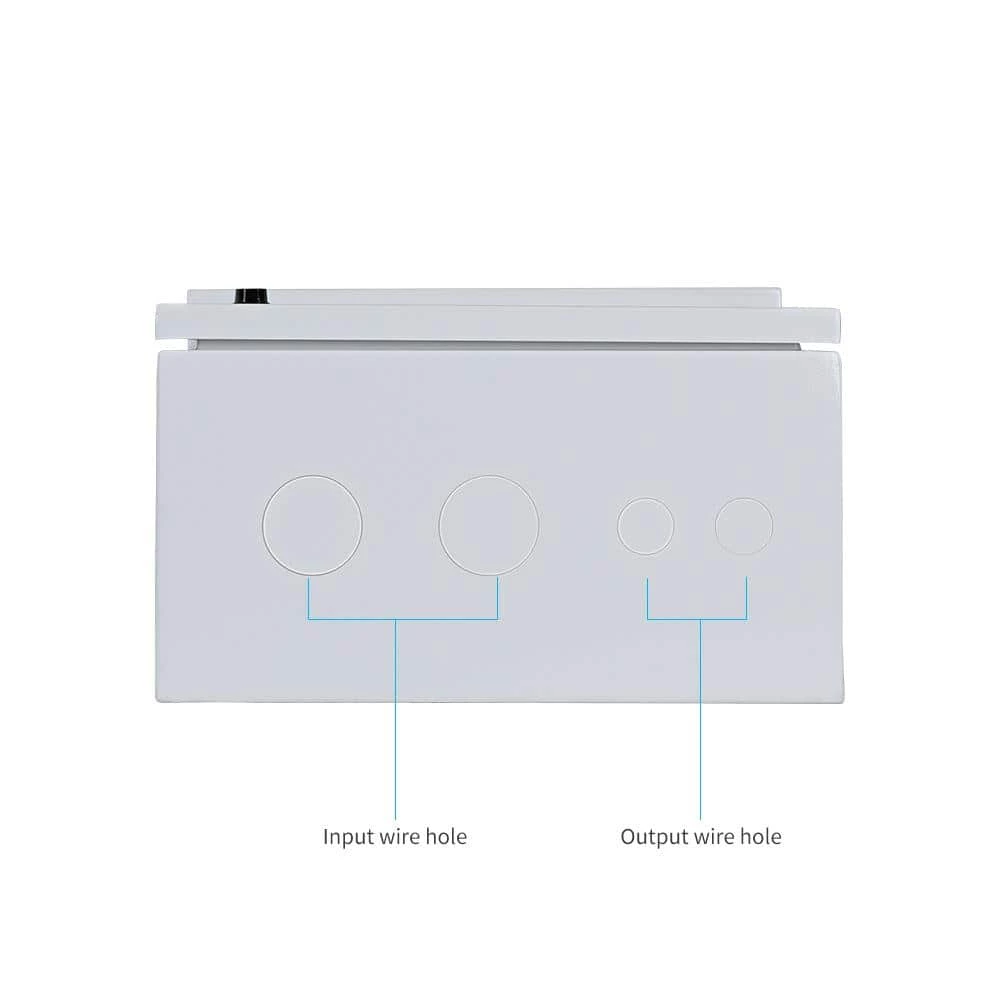

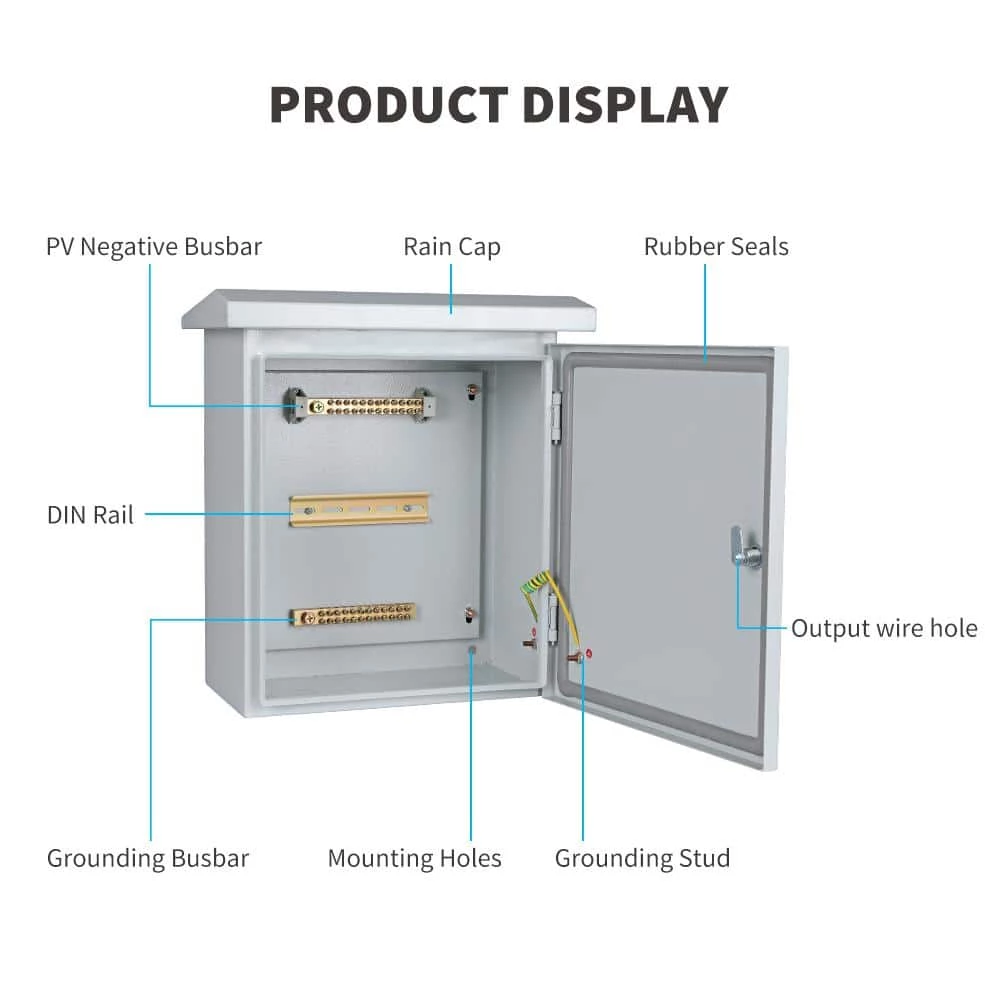

The Renogy 5 Strings Solar Combiner Box is the ideal solution to combine inputs from up to 5 strings of solar panels into a single output. It accepts up to five 1P miniature circuit breakers and one 2P surge protective device for improved safety of the solar system. The built-in standard DIN rail enables easy installation of the protection devices. Equipped with a rain cap and rubber seals, the grey steel enclosure is designed to survive in outdoor environments. The knockouts are reserved for waterproof strain reliefs or conduits.

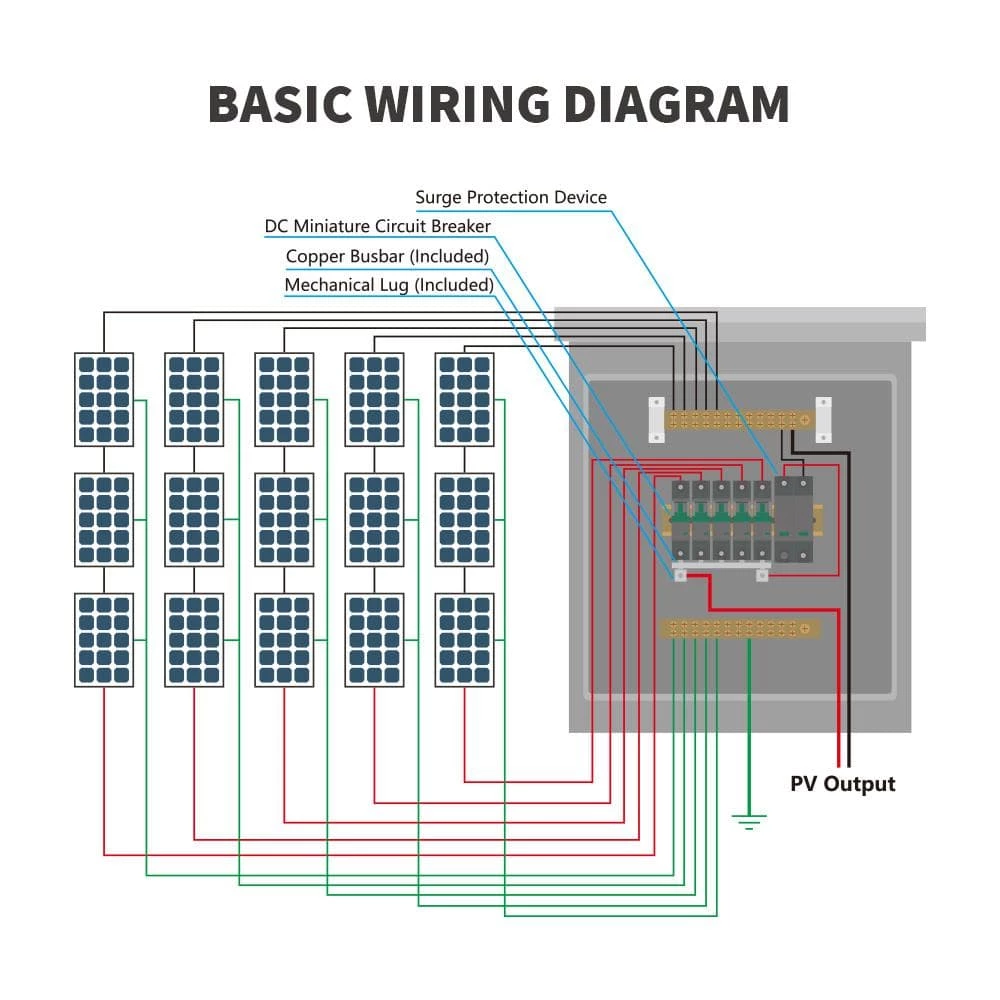

• 5 to 1 connection combining up to 5 solar panel inputs into 1 and each input can be equipped with a circuit breaker

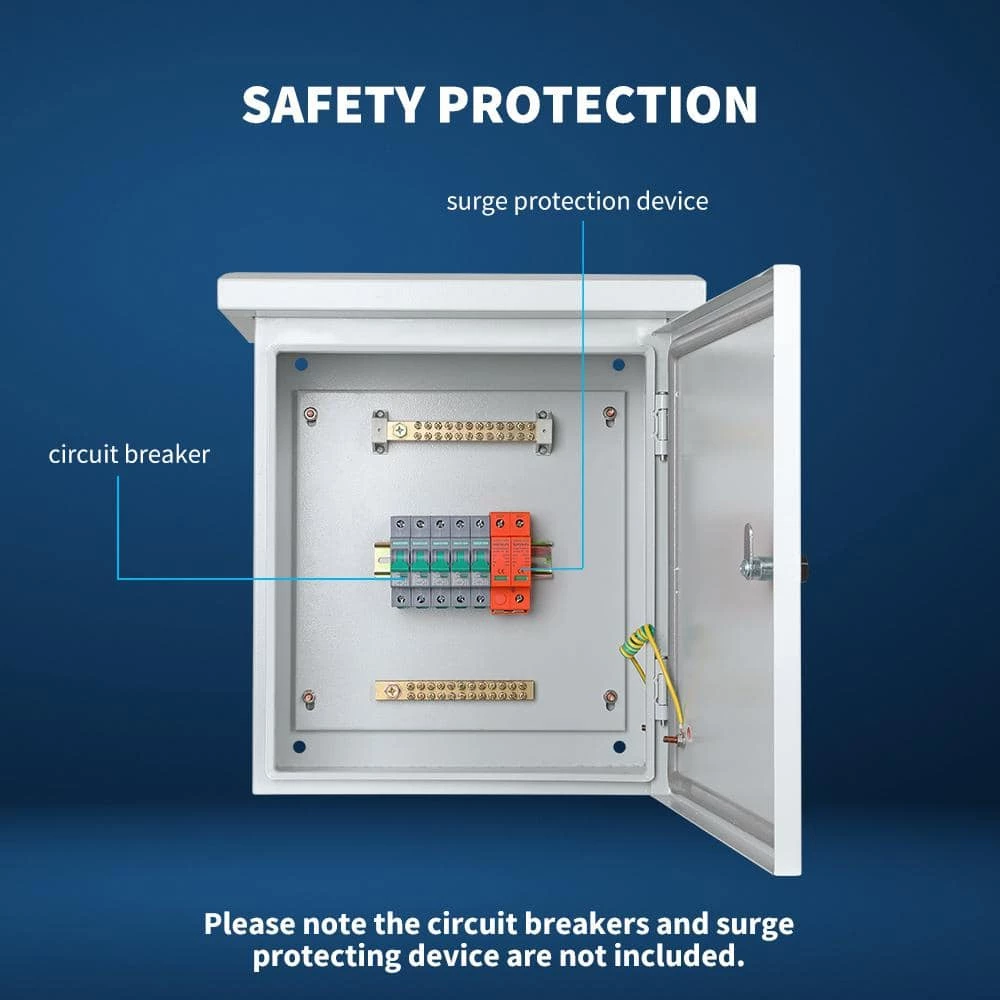

• Safety protection circuit breaker and surge protection device can be installed to provide overload/short circuit protection and lightning protection
• Safety protection circuit breaker and surge protection easy to install offers built-in standard DIN rail for easy installation

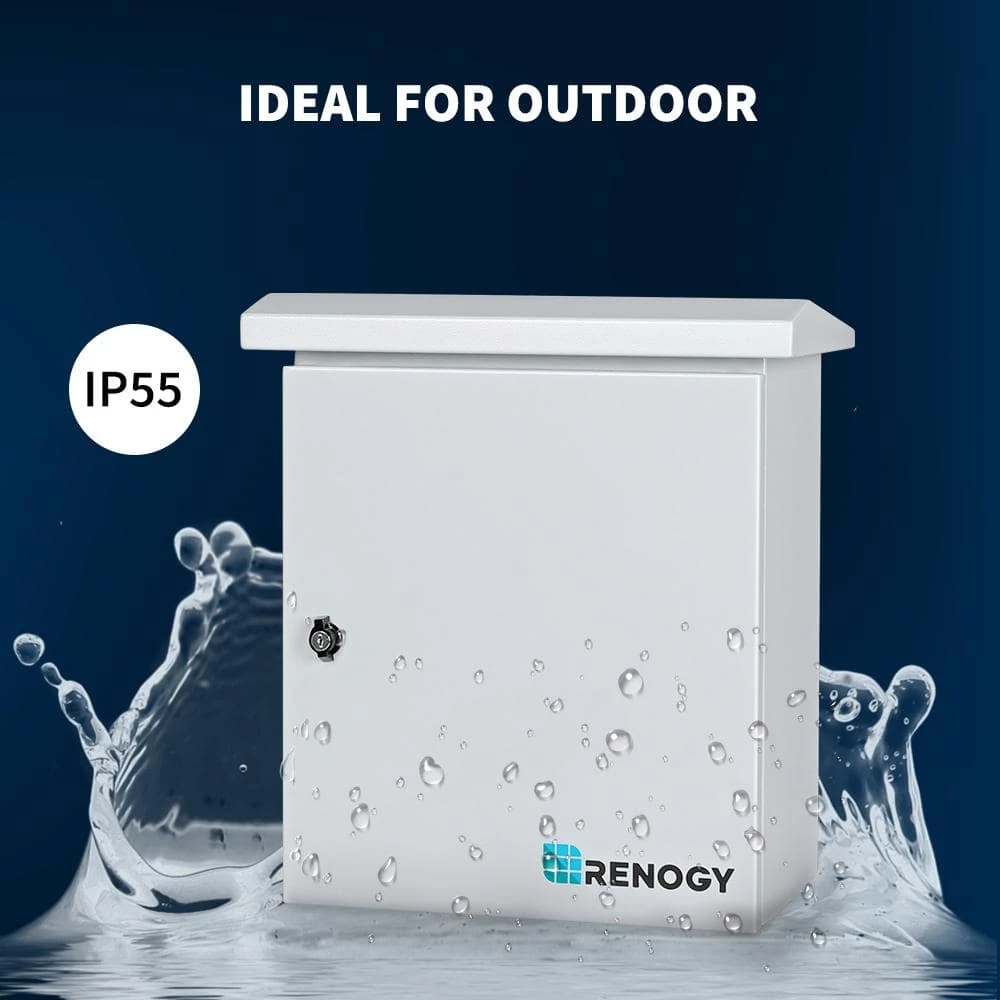

• Ideal for outdoor protection level at IP55 the double slope top design and rubber seals on door make it more suitable for outdoor environments
• Worry-free use suitable for both on-grid and off-grid solar systems material and workmanship warranty for 1-year

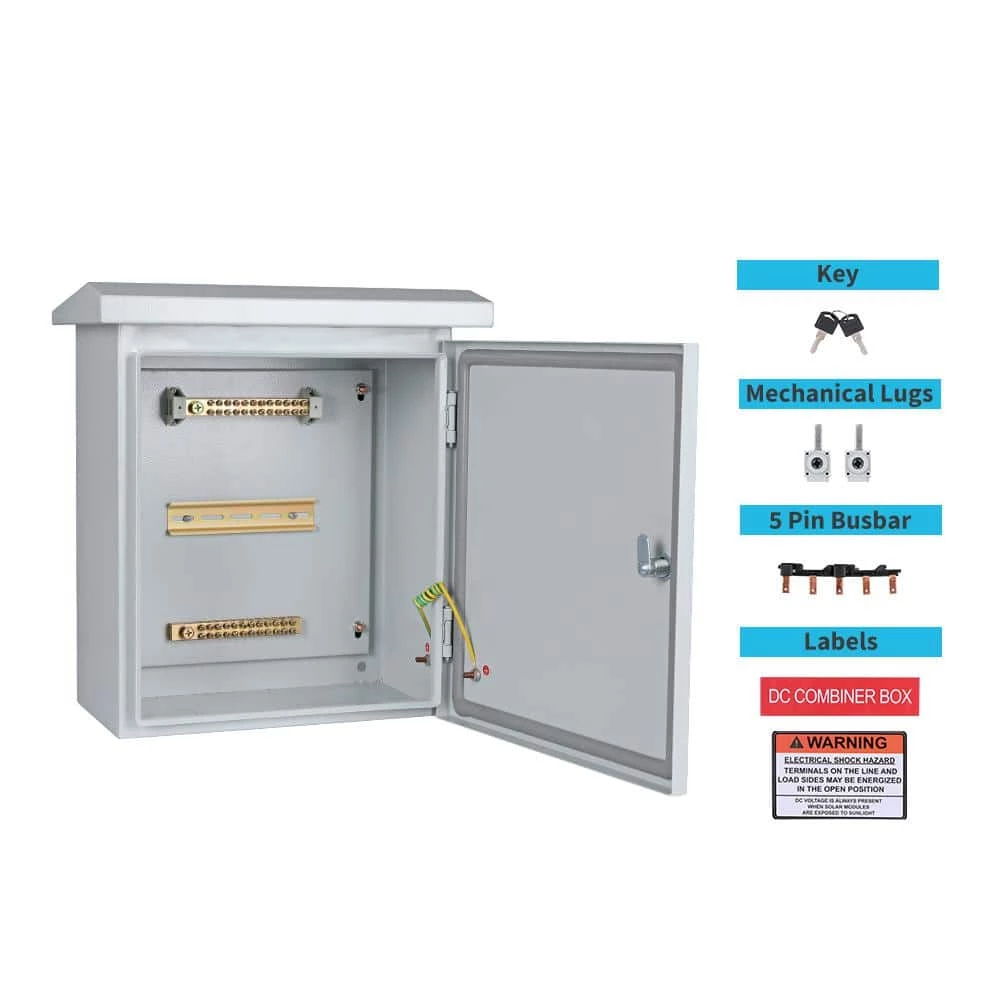

• Accessories: 1X 5 pin busbar: rated current 100A 2X mechanical lugs 1X key 2X labels
• Q1: if the ground wire is attached from the combiner box to the grounding rod, do the panels still need to be grounded A1: if the panels are grounded to the same rod, i suppose you do not need to add a second grounding in the case of an electrical storm, the grounding of the combiner panel is of the upmost importance
• Q2: can i use different wattage panels to connect to this box A2: no, only panels with the same voltage and wattage can be connected to the same box
• Q3: under what circumstances is this used A3: it is mainly used in home kits to combine up to 5 solar panel inputs into 1 single output and it can be installed either indoor or outdoor
• Q4: does a surge protective device have to be installe A4: yes, we suggested installing it in order to avoid device damage caused by lightning
