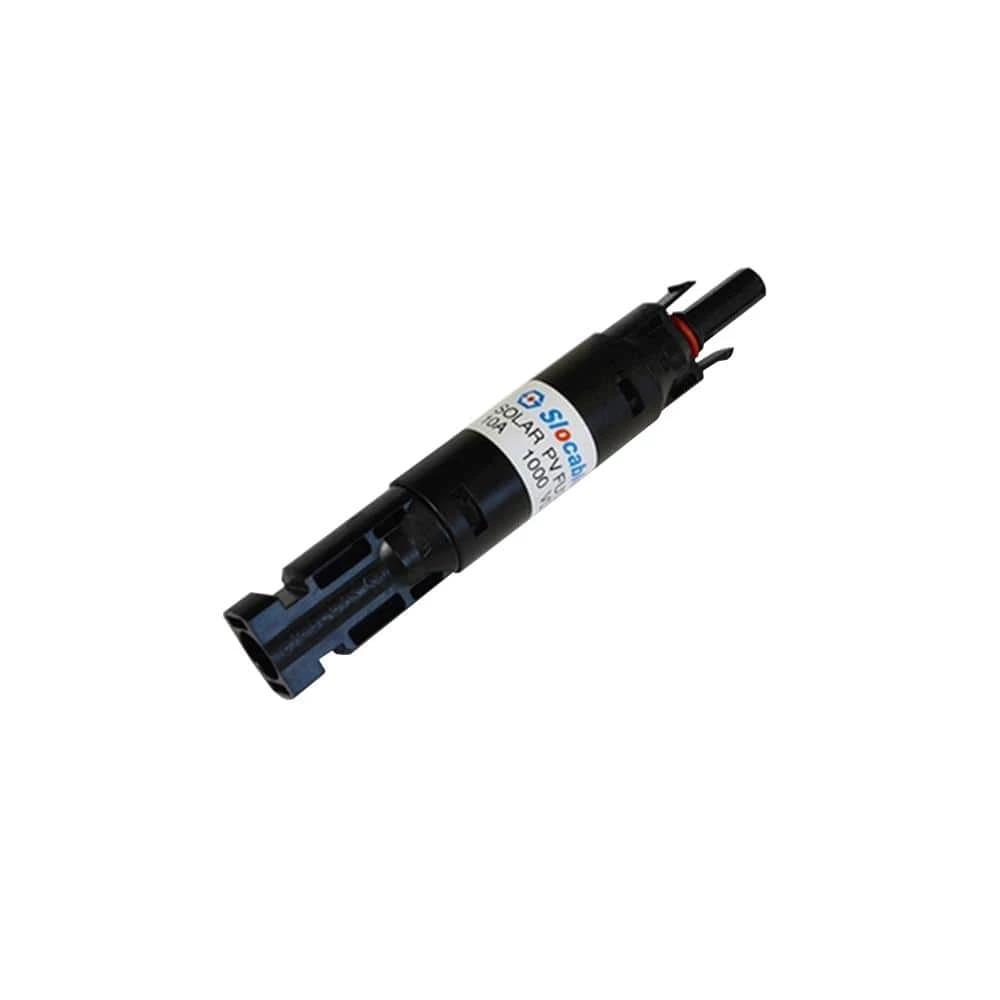

10 Amp Male and Female Connector PV Solar Waterproof In-Line Fuse Holder with Fuse by Renogy

This product is a 10A/15A/20A/30A fuse embedded into a waterproof fuse holder. It features an Male and Female connector lead on each end, making it compatible for use with an Adaptor Kit and solar panel leads. This Fuse Holder is designed to provide complete single circuit protection to your solar power array. The fuses prevent large currents from damaging the solar panels. Purchase this product for extra protection on your system.

• Rated current: 10 Amp Degree of Protection: IP2*/IP67
• Rated voltage: 1000-Volt DC Flame Class: UL94-V0
• Test voltage: 6000-Volt (50Hz,1-minute) Safety Class: II
• Contact resistance of plug connector: 1 m Suitable Connector: Solar Connector
• Contact material: copper, silver plated Fuse Can Replace
• Temperature range: -40°C to +125°C Insulation material: PPO
• Contact Resistance of Plug Connector:1mO Insertion Force / Withdrawal Force: =50N / =50N
• Ease of use compatible with PV cables with different insulation diameters
• Designed for a wide range of DC applications
• Simple plug-and-play
• Auto-lock equipment of male and female points render connections easy and reliable
• Safe waterproof – IP67 class protection
• Overvoltage Category: CATIII
• High current-carrying capacity
• Connector adopts touch and insertion of reed with inner-knob type
• Protection Class II
• Insulation material PPO.
